CL-20-LP L PIN
Code: CL-20-LP
$5.78
Product Description
•••••

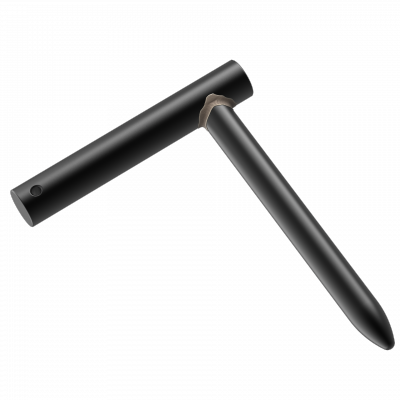

L Pins are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. L shaped pins are available in pin diameters from 1/8 to 3/4", including some number and letter sizes (4 to 20mm in metric), most in a choice of several pin lengths. Made in USA
| Part Number | A DIA NOMINAL | A DIA ACTUAL | B | C | D DIA | E |
|---|---|---|---|---|---|---|
| CL-20-LP | #9 | .1960 | 3 | 2-1/2 | 5/16 | 1/4 |
