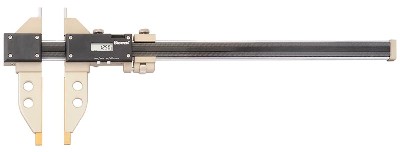

B5000BZ-24/600 Starrett Carbon Fiber Caliper 0-24*(0-600mm)
Code: B5000BZ-24-600
$1,790.43
Product Description
•••••
B5000BZ-24/600
Starrett Carbon Fiber Caliper
0-24"
- Carbon fiber construction significantly
reduces weight, improving
maneuverability - Titanium coated stainless steel outside
measurements jaws for long life and
superior flatness - Coolant resistant
- Two Preset Modes, REF I and REF II, allow
setting one mode to a setting master and
a second to a zero setting - Full-featured, sophisticated electronics
with RS232 output - Ideal for use with Starrett DataSure
- Wireless Data Collection Systems using a
1500-3A-1N end node - Will also transmit to PC through cable
PT62606
Features & Specifications
- When RS232 cable is installed, mm/inch
button functions as a send button - Single CR2032 lithium battery provides
over a year of normal use - Clamping screw
- Protective wooden case
- Resolution: 0.0005"/0.01mm
5000 & 5002 Only
- mm/inch mode button
- On/Off button
- Hold Feature will freeze the display when
in REF I or REF II mode
| 5000 Carbon Fiber Calipers | |||||
Cat. No. |
Outside |
Weight |
Jaw Depth |
Inside (w/Jaws) |
Inside (w/top pins) |
B5000BZ-20/500 |
0-20", 0-500mm |
2.43lb (1.10kg) |
4.921" (125mm) |
0.394-20", 10-500mm |
0.787-20", 20-500mm |
B5000BZ-24/600 |
0-24", 0-600mm |
2.56lb (1.16kg) |
0.394-24", 10-600mm |
0.787-24", 20-600mm |
|
B5000BZ-40/1000 |
0-40", 0-1000mm |
3.09lb (1.40kg) |
0.394-40", 10-1000mm |
0.787-40", 20-1000mm |
|
