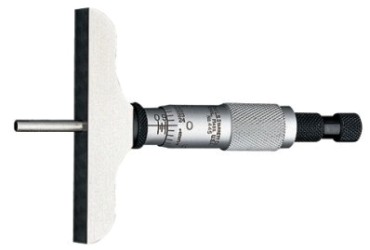

445MDZ-225RL Starrett Depth Micrometer, 0-225mm Range, 150mm Base, 9 Rods, RS, LN, Case
Code: 445MDZ-225RL
$459.77
Product Description
•••••
445MAZ-225RL
Starrett Depth Micrometer
225mm, 4" base
- The depths of holes, slots, shoulders and projections can be
measured to .001" or 0.01mm with these fine tools - 440 gages furnished with a 2-1/2" (63.5mm) base and 1/8"
(3.2mm) diameter measuring rods - 445 gages furnished with choices of 3" (75mm), 4" (100mm),
and
6" (150mm) bases and have 5/32" (4mm) diameter measuring
rods - Combination ratchet and speeder for uniform pressure and
quicker adjustment - Ring-type lock nut for quick and sure locking
| 440, 445 Depth Micrometers | |||||
| Catalog No. |
Range |
Base |
Rods |
Rod Dia. |
Description |
440Z-3L |
0-3" |
2-1/2" |
3 |
1/8" |
With Lock Nut, in Case |
440Z-6L |
0-6" |
6 |
|||
440Z-9L |
0-9" |
9 |
|||
440Z-3RL |
0-3" |
2-1/2" |
3 |
1/8" |
With Ratchet Stop, Lock Nut, in Case |
440Z-6RL |
0-6" |
6 |
|||
440Z-9RL |
0-9" |
9 |
|||
445AZ-3RL |
0-3" |
3" |
3 |
5/32" |
With Ratchet Stop, Lock Nut, in Case |
445AZ-6RL |
0-6" |
6 |
|||
445AZ-9RL |
0-9" |
9 |
|||
445AZ-12RL |
0-12" |
12 |
|||
445BZ-3RL |
0-3" |
4" |
3 |
5/32" |
|
445BZ-6RL |
0-6" |
6 |
|||
445BZ-9RL |
0-9" |
9 |
|||
445BZ-12RL |
0-12" |
12 |
|||
445DZ-3RL |
0-3" |
6" |
3 |
5/32" |
|
445DZ-6RL |
0-6" |
6 |
|||
445DZ-9RL |
0-9" |
9 |
|||
445DZ-12RL |
0-12" |
12 |
|||
| 440M, 445M Depth Micrometers | |||||
440MZ-75RL |
0-75mm |
63.5mm |
3 |
3.2mm |
With Ratchet Stop, Lock Nut, in Case |
440MZ-150RL |
0-150mm |
6 |
|||
440MZ-225RL |
0-225mm |
9 |
|||
445MAZ-75RL |
0-75mm |
75mm |
3 |
4mm |
|
445MAZ-150RL |
0-150mm |
6 |
|||
445MAZ-225RL |
0-225mm |
9 |
|||
445MBZ-75RL |
0-75mm |
100mm |
3 |
||
445MBZ-150RL |
0-150mm |
6 |
|||
445MBZ-225RL |
0-225mm |
9 |
|||
445MDZ-75RL |
0-75mm |
150mm |
3 |
||
445MDZ-150RL |
0-150mm |
6 |
|||
445MDZ-225RL |
0-225mm |
9 |
|||
