436RL-10 Starrett Outside Micrometer, 9-10* Range, .001* Grad, Ratchet Stop, Lock Nut
Code: 436RL-10
$363.33
Product Description
•••••
436RL-10

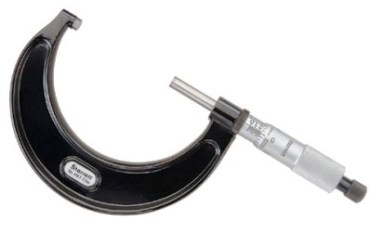

Starrett Outside Micrometer
9-10"
Same balanced design as the smaller sizes
but proportioned to these larger sizes with
.300" (7 .6mm) anvil and spindle diameters for
ease of use on larger work .
All the same features as the 0-6" and
0-150mm ranges 436 .1 Series Micrometers,
except:
- Larger sizes are furnished with
combination ratchet and speeder
for uniform pressure and quicker adjustment - Rigid and stable special cast
iron frame with perforations for
lightness and ribbed for strength and stability
| 436 Outside Micrometers | |||
Catalog No. |
Range |
Graduation |
Description |
| 436RL-7 | 6-7" |
.001" |
Ratchet Stop, Lock Nut |
| 436XRL-7 | Ratchet Stop, Lock Nut, Carbide Faces |
||
| T436XRL-7 | .0001" |
||
| 436RL-8 | 7-8" |
.001" |
Ratchet Stop, Lock Nut |
| 436XRL-8 | Ratchet Stop, Lock Nut, Carbide Faces |
||
| T436XRL-8 | .0001" |
||
| 436RL-9 | 8-9" |
.001" |
Ratchet Stop, Lock Nut |
| 436XRL-9 | Ratchet Stop, Lock Nut, Carbide Faces |
||
| T436XRL-9 | .0001" |
||
| 436RL-10 | 9-10" |
.001" |
Ratchet Stop, Lock Nut |
| 436XRL-10 | Ratchet Stop, Lock Nut, Carbide Faces |
||
| T436XRL-10 | .0001" |
||
| 436RL-11 | 10-11" |
.001" |
Ratchet Stop, Lock Nut |
| 436XRL-11 | Ratchet Stop, Lock Nut, Carbide Faces |
||
| T436XRL-11 | .0001" |
||
| 436RL-12 | 11-12" |
.001" |
Ratchet Stop, Lock Nut |
| 436XRL-12 | Ratchet Stop, Lock Nut, Carbide Faces |
||
| T436XRL-12 | .0001" |
||
| 436XRLZ-13 | 12-13" |
.0001" |
Ratchet Stop, Lock Nut, Carbide Faces, with Case |
| 436XRLZ-14 | 13-14" |
.0001" |
|
| 436XRLZ-15 | 14-15'" |
.0001" |
|
| 436XRLZ-16 | 15-16" |
.0001" |
|
| 436XRLZ-17 | 16-17" |
.0001" |
|
| 436XRLZ-18 | 17-18" |
.0001" |
|
| 436XRLZ-19 | 18-19" |
.0001" |
|
| 436XRLZ-20 | 19-20" |
.0001" |
|
| 436XRLZ-21 | 20-21" |
.0001" |
|
| 436XRLZ-22 | 21-22" |
.0001" |
|
| 436XRLZ-23 | 22-23" |
.0001" |
|
| 436XRLZ-24 | 23-24" |
.0001" |
|
