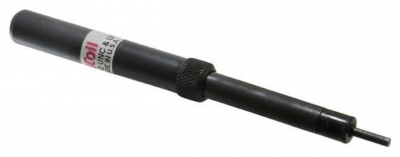

3695-6 #3/8-16 Tang Break-Off Tool
Code: 3695-6
$186.00
Product Description
•••••
| Tang Break-Off Tools | |||||
| The driving tangs of Heli-Coil inserts must be removed to eliminate their interference with the end of the assembled bolt. Heli-Coil tang break-off tools are available for use with inserts through and M12 nominal diameter. Their operation is automatic, having a spring loaded, easily triggered punch that strikes a sharp, uniform blow against the tang of the installed insert. The tool can be operated with one hand. | |||||
| Inch Series | |||||
| UNC | UNF | ||||
| 1-64 | 3695-01 | 3-56 | 3695-02 | ||
| 2-56 | 3695-02 | 4-48 | 3695-04 | ||
| 3-58 | 3695-02 | 6-40 | 3695-06 | ||
| 4-40 | 3695-04 | 8-36 | 3695-2 | ||
| 5-40 | 3695-04 | 10-32 | 3695-3 | ||
| 6-32 | 3695-06 | 1/4-28 | 3695-4 | ||
| 8-32 | 3695-2 | 5/16-24 | 3692-5 | ||
| 10-24 | 3695-3 | 3/8-24 | 3692-6 | ||
| 12-24 | 3695-3 | 7/16-20 | 3692-7 | ||
| 1/4-20 | 3695-4 | 1/2-20 | 3692-8 | ||
| 5/16-18 | 3695-5 | ||||
| 3/8-16 | 3695-6 | ||||
| 7/16-14 | 3695-7 | ||||
| 1/2-13 | 3695-8 | ||||
