222BXR-1 Starrett Sheet Metal Micrometer, 0-1* range, .001* Graduation, Carbide Faces, Ratchet Stop

222BXR-1

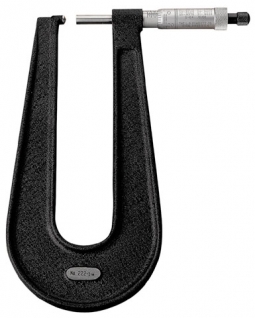

Starrett Sheet Metal Micrometer

These micrometers reach over the edge of sheet metal and take
measurements away from the edge toward the center. Also for other
gaging jobs where a deep throat micrometer is needed. Rounded anvil on
1" (25mm) size gives a point contact for more accurate gaging; flat anvil
is also available. The 1/2" and 13mm micrometers have satin chrome
frames; 1" and 25mm micrometer frames have black wrinkle finish.

Readability Features

• Starrett satin chrome finish – no glare – resists rust
• Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
• Convenient decimal equivalents on Inch tools

Ease-of-Handling Features

• Balanced frame and thimble design ensure easy handling and better readability
• Combination ratchet and speeder for uniform pressure and quicker adjustment
• Ring-type knurled lock nut for quick and sure locking (on 1/2" and 13mm range models)

Accuracy and Long-Life Features

• Rigid one-piece frame of drop forged steel, ribbed for strength and stability
• Extremely hard and stable one-piece spindle (the heart of our accuracy)
• Micro-lapped measuring face
• Quick and easy adjustment
